deepdream using tensorflow an introduction to generative deep learning
DeepDream is image modification algorithm an example of generative deep learning that uses representation learned by convolution neural networks to modify images. It was released by Google in 2015. The popularity of deepdream caused due to its crappy artifacts in images, from eyes to feathers to dog faces. It was initially created to help scientists and engineers to see what a deep neural network is seeing when it looks given input.
DeepDream is based on one of the techniques of visualizing learnings of convnets. Using that technique we can visualize patterns that activate a given layer of convolutional neural network or visual pattern that each filter respond to in convolutional layers. This is done by applying gradient ascent in input space, which maximizes the response of the specific filter in convnets.
Gradient Ascent
gradient ascent is opposite of gradient descent. Both are optimization algorithms. As gradient descent finds out minima of a function gradient ascent finds out maxima of a function. The process of gradient ascent is same as gradient descent we first find out gradient(derivative) of function with respect to our training parameters and then change training parameters so as to maximize instead of minimizing by moving it in opposite direction of gradient descent.
For visualizing patterns learned by convnets we have to maximize the response of specific filters. In simple words, we have a response(activations) of the specific filter in a convolutional layer and we change our input space to maximize that filter’s response by using gradient ascent.
Steps to create Deepdream
- we start with an image and pass it to a pretrained convolutional neural network like inception or vgg
- we try to maximize activation of entire layer rather than specific filter for this we define a simple loss function which will maximize activations of layers on maximizing that loss function. So we use mean of activations of layers as loss function.
- finally we will change our input space(image) by applying that gradient to image which eventually will maximize out loss function.

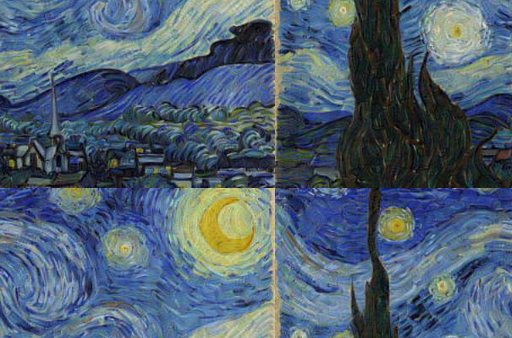

- additional steps like tiling and octaves are needed in order to work with large images so that it can be fit efficiently on RAM and provide better results.
Implementing deepdream teaches a lot of other concepts of deep learning. It breaks the rule of traditional model.fit in every deep learning problem. Also playing with result is quite interesting so get ready for deepdream.
1
input_img_path="starry.jpg"
Starting with our input image in which deepdream patterns will be shown as output. First we will define path of our input image.
1
2
3
4
5
6
7
import numpy as np
import tensorflow as tf
from tensorflow.keras.applications import inception_v3
from tensorflow.keras.models import load_model,Model
from PIL import Image
import IPython.display as display
import time
Next we will import all dependencies which we will need for creating deepdream.
- numpy : for arrays manipulation
- tensorflow : for tensor operations
- tensorflow.keras : high level neural network library for tensorflow for creating neural networks
- pillow : for converting an image to numpy array and numpy array to image, saving out output image.
- Ipython.display : for displaying images in notebook
- time : for calculating time of each iteration
We are using Inception pretrained model for this as it produces better outputs of deepdreams and original implementation also used Inception model.
Dreams in Inception movie.😁😁
1
2
3
4
5
6
7
def load_image(image_path,max_dim=512):
img=Image.open(image_path)
img=img.convert("RGB")
img.thumbnail([max_dim,max_dim])
img=np.array(img,dtype=np.uint8)
img=np.expand_dims(img,axis=0)
return img
the above function
- loads image from path
- convert it into RGB format
- resize it with max dimension specified while maintaining aspect ratio
- converting an image to numpy array and creating a batch of a single image since neural networks expects the input to be in batches.
1
2
3
def deprocess_inception_image(img):
img = 255*(img+1.0)/2.0
return np.array(img, np.uint8)
the above function cancels out effects of preprocessing applied by inception’s preprocess_input function. preprocess_input function for inception model scales down pixels of image to be in range -1 to 1 so this function will scale pixels to be in range 0 to 255
1
2
3
4
5
6
7
def array_to_img(array,deprocessing=False):
if deprocessing:
array=deprocess_inception_image(array)
if np.ndim(array)>3:
assert array.shape[0]==1
array=array[0]
return Image.fromarray(array)
the above function will convert array to image. if deprocessing is true it will first deprocess inception preprocessing and then convert array to image
1
2
3
def show_image(img):
image=array_to_img(img)
display.display(image)
the above function will show image in notebook by first converting array to image
1
2
3
input_image=load_image(input_img_path,max_dim=512)
print(input_image.shape)
show_image(input_image)
(1, 338, 512, 3)

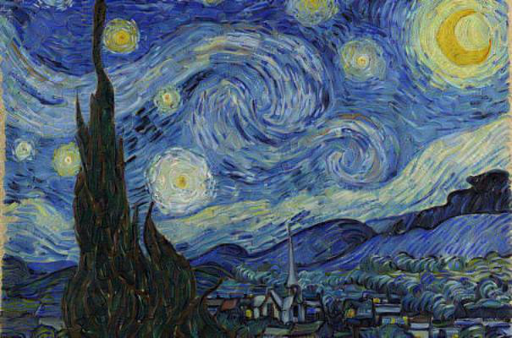

Now lets load our input image and display it.
1
2
preprocessed_image=inception_v3.preprocess_input(input_image)
show_image(deprocess_inception_image(preprocessed_image))
Also check if our deprocess_image function is working as expected
1
2
3
4
5
def deep_dream_model(model,layer_names):
model.trainable=False
outputs=[model.get_layer(name).output for name in layer_names]
new_model=Model(inputs=model.input,outputs=outputs)
return new_model
the above function creates a deepdream model. Since we are not training our model so set trainable to false. Our deepdream model takes input as image and outputs the activations of layers which we will use to embed patterns learned by that layers into our input image
1
2
inception=inception_v3.InceptionV3(weights="imagenet",include_top=False)
inception.summary()
Model: "inception_v3"
__________________________________________________________________________________________________
Layer (type) Output Shape Param # Connected to
==================================================================================================
input_1 (InputLayer) [(None, None, None, 0
__________________________________________________________________________________________________
conv2d (Conv2D) (None, None, None, 3 864 input_1[0][0]
__________________________________________________________________________________________________
batch_normalization (BatchNorma (None, None, None, 3 96 conv2d[0][0]
__________________________________________________________________________________________________
activation (Activation) (None, None, None, 3 0 batch_normalization[0][0]
__________________________________________________________________________________________________
conv2d_1 (Conv2D) (None, None, None, 3 9216 activation[0][0]
__________________________________________________________________________________________________
batch_normalization_1 (BatchNor (None, None, None, 3 96 conv2d_1[0][0]
__________________________________________________________________________________________________
activation_1 (Activation) (None, None, None, 3 0 batch_normalization_1[0][0]
__________________________________________________________________________________________________
conv2d_2 (Conv2D) (None, None, None, 6 18432 activation_1[0][0]
__________________________________________________________________________________________________
batch_normalization_2 (BatchNor (None, None, None, 6 192 conv2d_2[0][0]
__________________________________________________________________________________________________
activation_2 (Activation) (None, None, None, 6 0 batch_normalization_2[0][0]
__________________________________________________________________________________________________
max_pooling2d (MaxPooling2D) (None, None, None, 6 0 activation_2[0][0]
__________________________________________________________________________________________________
conv2d_3 (Conv2D) (None, None, None, 8 5120 max_pooling2d[0][0]
__________________________________________________________________________________________________
batch_normalization_3 (BatchNor (None, None, None, 8 240 conv2d_3[0][0]
__________________________________________________________________________________________________
activation_3 (Activation) (None, None, None, 8 0 batch_normalization_3[0][0]
__________________________________________________________________________________________________
conv2d_4 (Conv2D) (None, None, None, 1 138240 activation_3[0][0]
__________________________________________________________________________________________________
batch_normalization_4 (BatchNor (None, None, None, 1 576 conv2d_4[0][0]
__________________________________________________________________________________________________
activation_4 (Activation) (None, None, None, 1 0 batch_normalization_4[0][0]
__________________________________________________________________________________________________
max_pooling2d_1 (MaxPooling2D) (None, None, None, 1 0 activation_4[0][0]
__________________________________________________________________________________________________
conv2d_8 (Conv2D) (None, None, None, 6 12288 max_pooling2d_1[0][0]
__________________________________________________________________________________________________
batch_normalization_8 (BatchNor (None, None, None, 6 192 conv2d_8[0][0]
__________________________________________________________________________________________________
activation_8 (Activation) (None, None, None, 6 0 batch_normalization_8[0][0]
__________________________________________________________________________________________________
conv2d_6 (Conv2D) (None, None, None, 4 9216 max_pooling2d_1[0][0]
__________________________________________________________________________________________________
conv2d_9 (Conv2D) (None, None, None, 9 55296 activation_8[0][0]
__________________________________________________________________________________________________
batch_normalization_6 (BatchNor (None, None, None, 4 144 conv2d_6[0][0]
__________________________________________________________________________________________________
batch_normalization_9 (BatchNor (None, None, None, 9 288 conv2d_9[0][0]
__________________________________________________________________________________________________
activation_6 (Activation) (None, None, None, 4 0 batch_normalization_6[0][0]
__________________________________________________________________________________________________
activation_9 (Activation) (None, None, None, 9 0 batch_normalization_9[0][0]
__________________________________________________________________________________________________
average_pooling2d (AveragePooli (None, None, None, 1 0 max_pooling2d_1[0][0]
__________________________________________________________________________________________________
conv2d_5 (Conv2D) (None, None, None, 6 12288 max_pooling2d_1[0][0]
__________________________________________________________________________________________________
conv2d_7 (Conv2D) (None, None, None, 6 76800 activation_6[0][0]
__________________________________________________________________________________________________
conv2d_10 (Conv2D) (None, None, None, 9 82944 activation_9[0][0]
__________________________________________________________________________________________________
conv2d_11 (Conv2D) (None, None, None, 3 6144 average_pooling2d[0][0]
__________________________________________________________________________________________________
batch_normalization_5 (BatchNor (None, None, None, 6 192 conv2d_5[0][0]
__________________________________________________________________________________________________
batch_normalization_7 (BatchNor (None, None, None, 6 192 conv2d_7[0][0]
__________________________________________________________________________________________________
batch_normalization_10 (BatchNo (None, None, None, 9 288 conv2d_10[0][0]
__________________________________________________________________________________________________
batch_normalization_11 (BatchNo (None, None, None, 3 96 conv2d_11[0][0]
__________________________________________________________________________________________________
activation_5 (Activation) (None, None, None, 6 0 batch_normalization_5[0][0]
__________________________________________________________________________________________________
activation_7 (Activation) (None, None, None, 6 0 batch_normalization_7[0][0]
__________________________________________________________________________________________________
activation_10 (Activation) (None, None, None, 9 0 batch_normalization_10[0][0]
__________________________________________________________________________________________________
activation_11 (Activation) (None, None, None, 3 0 batch_normalization_11[0][0]
__________________________________________________________________________________________________
mixed0 (Concatenate) (None, None, None, 2 0 activation_5[0][0]
activation_7[0][0]
activation_10[0][0]
activation_11[0][0]
__________________________________________________________________________________________________
conv2d_15 (Conv2D) (None, None, None, 6 16384 mixed0[0][0]
__________________________________________________________________________________________________
batch_normalization_15 (BatchNo (None, None, None, 6 192 conv2d_15[0][0]
__________________________________________________________________________________________________
activation_15 (Activation) (None, None, None, 6 0 batch_normalization_15[0][0]
__________________________________________________________________________________________________
conv2d_13 (Conv2D) (None, None, None, 4 12288 mixed0[0][0]
__________________________________________________________________________________________________
conv2d_16 (Conv2D) (None, None, None, 9 55296 activation_15[0][0]
__________________________________________________________________________________________________
batch_normalization_13 (BatchNo (None, None, None, 4 144 conv2d_13[0][0]
__________________________________________________________________________________________________
batch_normalization_16 (BatchNo (None, None, None, 9 288 conv2d_16[0][0]
__________________________________________________________________________________________________
activation_13 (Activation) (None, None, None, 4 0 batch_normalization_13[0][0]
__________________________________________________________________________________________________
activation_16 (Activation) (None, None, None, 9 0 batch_normalization_16[0][0]
__________________________________________________________________________________________________
average_pooling2d_1 (AveragePoo (None, None, None, 2 0 mixed0[0][0]
__________________________________________________________________________________________________
conv2d_12 (Conv2D) (None, None, None, 6 16384 mixed0[0][0]
__________________________________________________________________________________________________
conv2d_14 (Conv2D) (None, None, None, 6 76800 activation_13[0][0]
__________________________________________________________________________________________________
conv2d_17 (Conv2D) (None, None, None, 9 82944 activation_16[0][0]
__________________________________________________________________________________________________
conv2d_18 (Conv2D) (None, None, None, 6 16384 average_pooling2d_1[0][0]
__________________________________________________________________________________________________
batch_normalization_12 (BatchNo (None, None, None, 6 192 conv2d_12[0][0]
__________________________________________________________________________________________________
batch_normalization_14 (BatchNo (None, None, None, 6 192 conv2d_14[0][0]
__________________________________________________________________________________________________
batch_normalization_17 (BatchNo (None, None, None, 9 288 conv2d_17[0][0]
__________________________________________________________________________________________________
batch_normalization_18 (BatchNo (None, None, None, 6 192 conv2d_18[0][0]
__________________________________________________________________________________________________
activation_12 (Activation) (None, None, None, 6 0 batch_normalization_12[0][0]
__________________________________________________________________________________________________
activation_14 (Activation) (None, None, None, 6 0 batch_normalization_14[0][0]
__________________________________________________________________________________________________
activation_17 (Activation) (None, None, None, 9 0 batch_normalization_17[0][0]
__________________________________________________________________________________________________
activation_18 (Activation) (None, None, None, 6 0 batch_normalization_18[0][0]
__________________________________________________________________________________________________
mixed1 (Concatenate) (None, None, None, 2 0 activation_12[0][0]
activation_14[0][0]
activation_17[0][0]
activation_18[0][0]
__________________________________________________________________________________________________
conv2d_22 (Conv2D) (None, None, None, 6 18432 mixed1[0][0]
__________________________________________________________________________________________________
batch_normalization_22 (BatchNo (None, None, None, 6 192 conv2d_22[0][0]
__________________________________________________________________________________________________
activation_22 (Activation) (None, None, None, 6 0 batch_normalization_22[0][0]
__________________________________________________________________________________________________
conv2d_20 (Conv2D) (None, None, None, 4 13824 mixed1[0][0]
__________________________________________________________________________________________________
conv2d_23 (Conv2D) (None, None, None, 9 55296 activation_22[0][0]
__________________________________________________________________________________________________
batch_normalization_20 (BatchNo (None, None, None, 4 144 conv2d_20[0][0]
__________________________________________________________________________________________________
batch_normalization_23 (BatchNo (None, None, None, 9 288 conv2d_23[0][0]
__________________________________________________________________________________________________
activation_20 (Activation) (None, None, None, 4 0 batch_normalization_20[0][0]
__________________________________________________________________________________________________
activation_23 (Activation) (None, None, None, 9 0 batch_normalization_23[0][0]
__________________________________________________________________________________________________
average_pooling2d_2 (AveragePoo (None, None, None, 2 0 mixed1[0][0]
__________________________________________________________________________________________________
conv2d_19 (Conv2D) (None, None, None, 6 18432 mixed1[0][0]
__________________________________________________________________________________________________
conv2d_21 (Conv2D) (None, None, None, 6 76800 activation_20[0][0]
__________________________________________________________________________________________________
conv2d_24 (Conv2D) (None, None, None, 9 82944 activation_23[0][0]
__________________________________________________________________________________________________
conv2d_25 (Conv2D) (None, None, None, 6 18432 average_pooling2d_2[0][0]
__________________________________________________________________________________________________
batch_normalization_19 (BatchNo (None, None, None, 6 192 conv2d_19[0][0]
__________________________________________________________________________________________________
batch_normalization_21 (BatchNo (None, None, None, 6 192 conv2d_21[0][0]
__________________________________________________________________________________________________
batch_normalization_24 (BatchNo (None, None, None, 9 288 conv2d_24[0][0]
__________________________________________________________________________________________________
batch_normalization_25 (BatchNo (None, None, None, 6 192 conv2d_25[0][0]
__________________________________________________________________________________________________
activation_19 (Activation) (None, None, None, 6 0 batch_normalization_19[0][0]
__________________________________________________________________________________________________
activation_21 (Activation) (None, None, None, 6 0 batch_normalization_21[0][0]
__________________________________________________________________________________________________
activation_24 (Activation) (None, None, None, 9 0 batch_normalization_24[0][0]
__________________________________________________________________________________________________
activation_25 (Activation) (None, None, None, 6 0 batch_normalization_25[0][0]
__________________________________________________________________________________________________
mixed2 (Concatenate) (None, None, None, 2 0 activation_19[0][0]
activation_21[0][0]
activation_24[0][0]
activation_25[0][0]
__________________________________________________________________________________________________
conv2d_27 (Conv2D) (None, None, None, 6 18432 mixed2[0][0]
__________________________________________________________________________________________________
batch_normalization_27 (BatchNo (None, None, None, 6 192 conv2d_27[0][0]
__________________________________________________________________________________________________
activation_27 (Activation) (None, None, None, 6 0 batch_normalization_27[0][0]
__________________________________________________________________________________________________
conv2d_28 (Conv2D) (None, None, None, 9 55296 activation_27[0][0]
__________________________________________________________________________________________________
batch_normalization_28 (BatchNo (None, None, None, 9 288 conv2d_28[0][0]
__________________________________________________________________________________________________
activation_28 (Activation) (None, None, None, 9 0 batch_normalization_28[0][0]
__________________________________________________________________________________________________
conv2d_26 (Conv2D) (None, None, None, 3 995328 mixed2[0][0]
__________________________________________________________________________________________________
conv2d_29 (Conv2D) (None, None, None, 9 82944 activation_28[0][0]
__________________________________________________________________________________________________
batch_normalization_26 (BatchNo (None, None, None, 3 1152 conv2d_26[0][0]
__________________________________________________________________________________________________
batch_normalization_29 (BatchNo (None, None, None, 9 288 conv2d_29[0][0]
__________________________________________________________________________________________________
activation_26 (Activation) (None, None, None, 3 0 batch_normalization_26[0][0]
__________________________________________________________________________________________________
activation_29 (Activation) (None, None, None, 9 0 batch_normalization_29[0][0]
__________________________________________________________________________________________________
max_pooling2d_2 (MaxPooling2D) (None, None, None, 2 0 mixed2[0][0]
__________________________________________________________________________________________________
mixed3 (Concatenate) (None, None, None, 7 0 activation_26[0][0]
activation_29[0][0]
max_pooling2d_2[0][0]
__________________________________________________________________________________________________
conv2d_34 (Conv2D) (None, None, None, 1 98304 mixed3[0][0]
__________________________________________________________________________________________________
batch_normalization_34 (BatchNo (None, None, None, 1 384 conv2d_34[0][0]
__________________________________________________________________________________________________
activation_34 (Activation) (None, None, None, 1 0 batch_normalization_34[0][0]
__________________________________________________________________________________________________
conv2d_35 (Conv2D) (None, None, None, 1 114688 activation_34[0][0]
__________________________________________________________________________________________________
batch_normalization_35 (BatchNo (None, None, None, 1 384 conv2d_35[0][0]
__________________________________________________________________________________________________
activation_35 (Activation) (None, None, None, 1 0 batch_normalization_35[0][0]
__________________________________________________________________________________________________
conv2d_31 (Conv2D) (None, None, None, 1 98304 mixed3[0][0]
__________________________________________________________________________________________________
conv2d_36 (Conv2D) (None, None, None, 1 114688 activation_35[0][0]
__________________________________________________________________________________________________
batch_normalization_31 (BatchNo (None, None, None, 1 384 conv2d_31[0][0]
__________________________________________________________________________________________________
batch_normalization_36 (BatchNo (None, None, None, 1 384 conv2d_36[0][0]
__________________________________________________________________________________________________
activation_31 (Activation) (None, None, None, 1 0 batch_normalization_31[0][0]
__________________________________________________________________________________________________
activation_36 (Activation) (None, None, None, 1 0 batch_normalization_36[0][0]
__________________________________________________________________________________________________
conv2d_32 (Conv2D) (None, None, None, 1 114688 activation_31[0][0]
__________________________________________________________________________________________________
conv2d_37 (Conv2D) (None, None, None, 1 114688 activation_36[0][0]
__________________________________________________________________________________________________
batch_normalization_32 (BatchNo (None, None, None, 1 384 conv2d_32[0][0]
__________________________________________________________________________________________________
batch_normalization_37 (BatchNo (None, None, None, 1 384 conv2d_37[0][0]
__________________________________________________________________________________________________
activation_32 (Activation) (None, None, None, 1 0 batch_normalization_32[0][0]
__________________________________________________________________________________________________
activation_37 (Activation) (None, None, None, 1 0 batch_normalization_37[0][0]
__________________________________________________________________________________________________
average_pooling2d_3 (AveragePoo (None, None, None, 7 0 mixed3[0][0]
__________________________________________________________________________________________________
conv2d_30 (Conv2D) (None, None, None, 1 147456 mixed3[0][0]
__________________________________________________________________________________________________
conv2d_33 (Conv2D) (None, None, None, 1 172032 activation_32[0][0]
__________________________________________________________________________________________________
conv2d_38 (Conv2D) (None, None, None, 1 172032 activation_37[0][0]
__________________________________________________________________________________________________
conv2d_39 (Conv2D) (None, None, None, 1 147456 average_pooling2d_3[0][0]
__________________________________________________________________________________________________
batch_normalization_30 (BatchNo (None, None, None, 1 576 conv2d_30[0][0]
__________________________________________________________________________________________________
batch_normalization_33 (BatchNo (None, None, None, 1 576 conv2d_33[0][0]
__________________________________________________________________________________________________
batch_normalization_38 (BatchNo (None, None, None, 1 576 conv2d_38[0][0]
__________________________________________________________________________________________________
batch_normalization_39 (BatchNo (None, None, None, 1 576 conv2d_39[0][0]
__________________________________________________________________________________________________
activation_30 (Activation) (None, None, None, 1 0 batch_normalization_30[0][0]
__________________________________________________________________________________________________
activation_33 (Activation) (None, None, None, 1 0 batch_normalization_33[0][0]
__________________________________________________________________________________________________
activation_38 (Activation) (None, None, None, 1 0 batch_normalization_38[0][0]
__________________________________________________________________________________________________
activation_39 (Activation) (None, None, None, 1 0 batch_normalization_39[0][0]
__________________________________________________________________________________________________
mixed4 (Concatenate) (None, None, None, 7 0 activation_30[0][0]
activation_33[0][0]
activation_38[0][0]
activation_39[0][0]
__________________________________________________________________________________________________
conv2d_44 (Conv2D) (None, None, None, 1 122880 mixed4[0][0]
__________________________________________________________________________________________________
batch_normalization_44 (BatchNo (None, None, None, 1 480 conv2d_44[0][0]
__________________________________________________________________________________________________
activation_44 (Activation) (None, None, None, 1 0 batch_normalization_44[0][0]
__________________________________________________________________________________________________
conv2d_45 (Conv2D) (None, None, None, 1 179200 activation_44[0][0]
__________________________________________________________________________________________________
batch_normalization_45 (BatchNo (None, None, None, 1 480 conv2d_45[0][0]
__________________________________________________________________________________________________
activation_45 (Activation) (None, None, None, 1 0 batch_normalization_45[0][0]
__________________________________________________________________________________________________
conv2d_41 (Conv2D) (None, None, None, 1 122880 mixed4[0][0]
__________________________________________________________________________________________________
conv2d_46 (Conv2D) (None, None, None, 1 179200 activation_45[0][0]
__________________________________________________________________________________________________
batch_normalization_41 (BatchNo (None, None, None, 1 480 conv2d_41[0][0]
__________________________________________________________________________________________________
batch_normalization_46 (BatchNo (None, None, None, 1 480 conv2d_46[0][0]
__________________________________________________________________________________________________
activation_41 (Activation) (None, None, None, 1 0 batch_normalization_41[0][0]
__________________________________________________________________________________________________
activation_46 (Activation) (None, None, None, 1 0 batch_normalization_46[0][0]
__________________________________________________________________________________________________
conv2d_42 (Conv2D) (None, None, None, 1 179200 activation_41[0][0]
__________________________________________________________________________________________________
conv2d_47 (Conv2D) (None, None, None, 1 179200 activation_46[0][0]
__________________________________________________________________________________________________
batch_normalization_42 (BatchNo (None, None, None, 1 480 conv2d_42[0][0]
__________________________________________________________________________________________________
batch_normalization_47 (BatchNo (None, None, None, 1 480 conv2d_47[0][0]
__________________________________________________________________________________________________
activation_42 (Activation) (None, None, None, 1 0 batch_normalization_42[0][0]
__________________________________________________________________________________________________
activation_47 (Activation) (None, None, None, 1 0 batch_normalization_47[0][0]
__________________________________________________________________________________________________
average_pooling2d_4 (AveragePoo (None, None, None, 7 0 mixed4[0][0]
__________________________________________________________________________________________________
conv2d_40 (Conv2D) (None, None, None, 1 147456 mixed4[0][0]
__________________________________________________________________________________________________
conv2d_43 (Conv2D) (None, None, None, 1 215040 activation_42[0][0]
__________________________________________________________________________________________________
conv2d_48 (Conv2D) (None, None, None, 1 215040 activation_47[0][0]
__________________________________________________________________________________________________
conv2d_49 (Conv2D) (None, None, None, 1 147456 average_pooling2d_4[0][0]
__________________________________________________________________________________________________
batch_normalization_40 (BatchNo (None, None, None, 1 576 conv2d_40[0][0]
__________________________________________________________________________________________________
batch_normalization_43 (BatchNo (None, None, None, 1 576 conv2d_43[0][0]
__________________________________________________________________________________________________
batch_normalization_48 (BatchNo (None, None, None, 1 576 conv2d_48[0][0]
__________________________________________________________________________________________________
batch_normalization_49 (BatchNo (None, None, None, 1 576 conv2d_49[0][0]
__________________________________________________________________________________________________
activation_40 (Activation) (None, None, None, 1 0 batch_normalization_40[0][0]
__________________________________________________________________________________________________
activation_43 (Activation) (None, None, None, 1 0 batch_normalization_43[0][0]
__________________________________________________________________________________________________
activation_48 (Activation) (None, None, None, 1 0 batch_normalization_48[0][0]
__________________________________________________________________________________________________
activation_49 (Activation) (None, None, None, 1 0 batch_normalization_49[0][0]
__________________________________________________________________________________________________
mixed5 (Concatenate) (None, None, None, 7 0 activation_40[0][0]
activation_43[0][0]
activation_48[0][0]
activation_49[0][0]
__________________________________________________________________________________________________
conv2d_54 (Conv2D) (None, None, None, 1 122880 mixed5[0][0]
__________________________________________________________________________________________________
batch_normalization_54 (BatchNo (None, None, None, 1 480 conv2d_54[0][0]
__________________________________________________________________________________________________
activation_54 (Activation) (None, None, None, 1 0 batch_normalization_54[0][0]
__________________________________________________________________________________________________
conv2d_55 (Conv2D) (None, None, None, 1 179200 activation_54[0][0]
__________________________________________________________________________________________________
batch_normalization_55 (BatchNo (None, None, None, 1 480 conv2d_55[0][0]
__________________________________________________________________________________________________
activation_55 (Activation) (None, None, None, 1 0 batch_normalization_55[0][0]
__________________________________________________________________________________________________
conv2d_51 (Conv2D) (None, None, None, 1 122880 mixed5[0][0]
__________________________________________________________________________________________________
conv2d_56 (Conv2D) (None, None, None, 1 179200 activation_55[0][0]
__________________________________________________________________________________________________
batch_normalization_51 (BatchNo (None, None, None, 1 480 conv2d_51[0][0]
__________________________________________________________________________________________________
batch_normalization_56 (BatchNo (None, None, None, 1 480 conv2d_56[0][0]
__________________________________________________________________________________________________
activation_51 (Activation) (None, None, None, 1 0 batch_normalization_51[0][0]
__________________________________________________________________________________________________
activation_56 (Activation) (None, None, None, 1 0 batch_normalization_56[0][0]
__________________________________________________________________________________________________
conv2d_52 (Conv2D) (None, None, None, 1 179200 activation_51[0][0]
__________________________________________________________________________________________________
conv2d_57 (Conv2D) (None, None, None, 1 179200 activation_56[0][0]
__________________________________________________________________________________________________
batch_normalization_52 (BatchNo (None, None, None, 1 480 conv2d_52[0][0]
__________________________________________________________________________________________________
batch_normalization_57 (BatchNo (None, None, None, 1 480 conv2d_57[0][0]
__________________________________________________________________________________________________
activation_52 (Activation) (None, None, None, 1 0 batch_normalization_52[0][0]
__________________________________________________________________________________________________
activation_57 (Activation) (None, None, None, 1 0 batch_normalization_57[0][0]
__________________________________________________________________________________________________
average_pooling2d_5 (AveragePoo (None, None, None, 7 0 mixed5[0][0]
__________________________________________________________________________________________________
conv2d_50 (Conv2D) (None, None, None, 1 147456 mixed5[0][0]
__________________________________________________________________________________________________
conv2d_53 (Conv2D) (None, None, None, 1 215040 activation_52[0][0]
__________________________________________________________________________________________________
conv2d_58 (Conv2D) (None, None, None, 1 215040 activation_57[0][0]
__________________________________________________________________________________________________
conv2d_59 (Conv2D) (None, None, None, 1 147456 average_pooling2d_5[0][0]
__________________________________________________________________________________________________
batch_normalization_50 (BatchNo (None, None, None, 1 576 conv2d_50[0][0]
__________________________________________________________________________________________________
batch_normalization_53 (BatchNo (None, None, None, 1 576 conv2d_53[0][0]
__________________________________________________________________________________________________
batch_normalization_58 (BatchNo (None, None, None, 1 576 conv2d_58[0][0]
__________________________________________________________________________________________________
batch_normalization_59 (BatchNo (None, None, None, 1 576 conv2d_59[0][0]
__________________________________________________________________________________________________
activation_50 (Activation) (None, None, None, 1 0 batch_normalization_50[0][0]
__________________________________________________________________________________________________
activation_53 (Activation) (None, None, None, 1 0 batch_normalization_53[0][0]
__________________________________________________________________________________________________
activation_58 (Activation) (None, None, None, 1 0 batch_normalization_58[0][0]
__________________________________________________________________________________________________
activation_59 (Activation) (None, None, None, 1 0 batch_normalization_59[0][0]
__________________________________________________________________________________________________
mixed6 (Concatenate) (None, None, None, 7 0 activation_50[0][0]
activation_53[0][0]
activation_58[0][0]
activation_59[0][0]
__________________________________________________________________________________________________
conv2d_64 (Conv2D) (None, None, None, 1 147456 mixed6[0][0]
__________________________________________________________________________________________________
batch_normalization_64 (BatchNo (None, None, None, 1 576 conv2d_64[0][0]
__________________________________________________________________________________________________
activation_64 (Activation) (None, None, None, 1 0 batch_normalization_64[0][0]
__________________________________________________________________________________________________
conv2d_65 (Conv2D) (None, None, None, 1 258048 activation_64[0][0]
__________________________________________________________________________________________________
batch_normalization_65 (BatchNo (None, None, None, 1 576 conv2d_65[0][0]
__________________________________________________________________________________________________
activation_65 (Activation) (None, None, None, 1 0 batch_normalization_65[0][0]
__________________________________________________________________________________________________
conv2d_61 (Conv2D) (None, None, None, 1 147456 mixed6[0][0]
__________________________________________________________________________________________________
conv2d_66 (Conv2D) (None, None, None, 1 258048 activation_65[0][0]
__________________________________________________________________________________________________
batch_normalization_61 (BatchNo (None, None, None, 1 576 conv2d_61[0][0]
__________________________________________________________________________________________________
batch_normalization_66 (BatchNo (None, None, None, 1 576 conv2d_66[0][0]
__________________________________________________________________________________________________
activation_61 (Activation) (None, None, None, 1 0 batch_normalization_61[0][0]
__________________________________________________________________________________________________
activation_66 (Activation) (None, None, None, 1 0 batch_normalization_66[0][0]
__________________________________________________________________________________________________
conv2d_62 (Conv2D) (None, None, None, 1 258048 activation_61[0][0]
__________________________________________________________________________________________________
conv2d_67 (Conv2D) (None, None, None, 1 258048 activation_66[0][0]
__________________________________________________________________________________________________
batch_normalization_62 (BatchNo (None, None, None, 1 576 conv2d_62[0][0]
__________________________________________________________________________________________________
batch_normalization_67 (BatchNo (None, None, None, 1 576 conv2d_67[0][0]
__________________________________________________________________________________________________
activation_62 (Activation) (None, None, None, 1 0 batch_normalization_62[0][0]
__________________________________________________________________________________________________
activation_67 (Activation) (None, None, None, 1 0 batch_normalization_67[0][0]
__________________________________________________________________________________________________
average_pooling2d_6 (AveragePoo (None, None, None, 7 0 mixed6[0][0]
__________________________________________________________________________________________________
conv2d_60 (Conv2D) (None, None, None, 1 147456 mixed6[0][0]
__________________________________________________________________________________________________
conv2d_63 (Conv2D) (None, None, None, 1 258048 activation_62[0][0]
__________________________________________________________________________________________________
conv2d_68 (Conv2D) (None, None, None, 1 258048 activation_67[0][0]
__________________________________________________________________________________________________
conv2d_69 (Conv2D) (None, None, None, 1 147456 average_pooling2d_6[0][0]
__________________________________________________________________________________________________
batch_normalization_60 (BatchNo (None, None, None, 1 576 conv2d_60[0][0]
__________________________________________________________________________________________________
batch_normalization_63 (BatchNo (None, None, None, 1 576 conv2d_63[0][0]
__________________________________________________________________________________________________
batch_normalization_68 (BatchNo (None, None, None, 1 576 conv2d_68[0][0]
__________________________________________________________________________________________________
batch_normalization_69 (BatchNo (None, None, None, 1 576 conv2d_69[0][0]
__________________________________________________________________________________________________
activation_60 (Activation) (None, None, None, 1 0 batch_normalization_60[0][0]
__________________________________________________________________________________________________
activation_63 (Activation) (None, None, None, 1 0 batch_normalization_63[0][0]
__________________________________________________________________________________________________
activation_68 (Activation) (None, None, None, 1 0 batch_normalization_68[0][0]
__________________________________________________________________________________________________
activation_69 (Activation) (None, None, None, 1 0 batch_normalization_69[0][0]
__________________________________________________________________________________________________
mixed7 (Concatenate) (None, None, None, 7 0 activation_60[0][0]
activation_63[0][0]
activation_68[0][0]
activation_69[0][0]
__________________________________________________________________________________________________
conv2d_72 (Conv2D) (None, None, None, 1 147456 mixed7[0][0]
__________________________________________________________________________________________________
batch_normalization_72 (BatchNo (None, None, None, 1 576 conv2d_72[0][0]
__________________________________________________________________________________________________
activation_72 (Activation) (None, None, None, 1 0 batch_normalization_72[0][0]
__________________________________________________________________________________________________
conv2d_73 (Conv2D) (None, None, None, 1 258048 activation_72[0][0]
__________________________________________________________________________________________________
batch_normalization_73 (BatchNo (None, None, None, 1 576 conv2d_73[0][0]
__________________________________________________________________________________________________
activation_73 (Activation) (None, None, None, 1 0 batch_normalization_73[0][0]
__________________________________________________________________________________________________
conv2d_70 (Conv2D) (None, None, None, 1 147456 mixed7[0][0]
__________________________________________________________________________________________________
conv2d_74 (Conv2D) (None, None, None, 1 258048 activation_73[0][0]
__________________________________________________________________________________________________
batch_normalization_70 (BatchNo (None, None, None, 1 576 conv2d_70[0][0]
__________________________________________________________________________________________________
batch_normalization_74 (BatchNo (None, None, None, 1 576 conv2d_74[0][0]
__________________________________________________________________________________________________
activation_70 (Activation) (None, None, None, 1 0 batch_normalization_70[0][0]
__________________________________________________________________________________________________
activation_74 (Activation) (None, None, None, 1 0 batch_normalization_74[0][0]
__________________________________________________________________________________________________
conv2d_71 (Conv2D) (None, None, None, 3 552960 activation_70[0][0]
__________________________________________________________________________________________________
conv2d_75 (Conv2D) (None, None, None, 1 331776 activation_74[0][0]
__________________________________________________________________________________________________
batch_normalization_71 (BatchNo (None, None, None, 3 960 conv2d_71[0][0]
__________________________________________________________________________________________________
batch_normalization_75 (BatchNo (None, None, None, 1 576 conv2d_75[0][0]
__________________________________________________________________________________________________
activation_71 (Activation) (None, None, None, 3 0 batch_normalization_71[0][0]
__________________________________________________________________________________________________
activation_75 (Activation) (None, None, None, 1 0 batch_normalization_75[0][0]
__________________________________________________________________________________________________
max_pooling2d_3 (MaxPooling2D) (None, None, None, 7 0 mixed7[0][0]
__________________________________________________________________________________________________
mixed8 (Concatenate) (None, None, None, 1 0 activation_71[0][0]
activation_75[0][0]
max_pooling2d_3[0][0]
__________________________________________________________________________________________________
conv2d_80 (Conv2D) (None, None, None, 4 573440 mixed8[0][0]
__________________________________________________________________________________________________
batch_normalization_80 (BatchNo (None, None, None, 4 1344 conv2d_80[0][0]
__________________________________________________________________________________________________
activation_80 (Activation) (None, None, None, 4 0 batch_normalization_80[0][0]
__________________________________________________________________________________________________
conv2d_77 (Conv2D) (None, None, None, 3 491520 mixed8[0][0]
__________________________________________________________________________________________________
conv2d_81 (Conv2D) (None, None, None, 3 1548288 activation_80[0][0]
__________________________________________________________________________________________________
batch_normalization_77 (BatchNo (None, None, None, 3 1152 conv2d_77[0][0]
__________________________________________________________________________________________________
batch_normalization_81 (BatchNo (None, None, None, 3 1152 conv2d_81[0][0]
__________________________________________________________________________________________________
activation_77 (Activation) (None, None, None, 3 0 batch_normalization_77[0][0]
__________________________________________________________________________________________________
activation_81 (Activation) (None, None, None, 3 0 batch_normalization_81[0][0]
__________________________________________________________________________________________________
conv2d_78 (Conv2D) (None, None, None, 3 442368 activation_77[0][0]
__________________________________________________________________________________________________
conv2d_79 (Conv2D) (None, None, None, 3 442368 activation_77[0][0]
__________________________________________________________________________________________________
conv2d_82 (Conv2D) (None, None, None, 3 442368 activation_81[0][0]
__________________________________________________________________________________________________
conv2d_83 (Conv2D) (None, None, None, 3 442368 activation_81[0][0]
__________________________________________________________________________________________________
average_pooling2d_7 (AveragePoo (None, None, None, 1 0 mixed8[0][0]
__________________________________________________________________________________________________
conv2d_76 (Conv2D) (None, None, None, 3 409600 mixed8[0][0]
__________________________________________________________________________________________________
batch_normalization_78 (BatchNo (None, None, None, 3 1152 conv2d_78[0][0]
__________________________________________________________________________________________________
batch_normalization_79 (BatchNo (None, None, None, 3 1152 conv2d_79[0][0]
__________________________________________________________________________________________________
batch_normalization_82 (BatchNo (None, None, None, 3 1152 conv2d_82[0][0]
__________________________________________________________________________________________________
batch_normalization_83 (BatchNo (None, None, None, 3 1152 conv2d_83[0][0]
__________________________________________________________________________________________________
conv2d_84 (Conv2D) (None, None, None, 1 245760 average_pooling2d_7[0][0]
__________________________________________________________________________________________________
batch_normalization_76 (BatchNo (None, None, None, 3 960 conv2d_76[0][0]
__________________________________________________________________________________________________
activation_78 (Activation) (None, None, None, 3 0 batch_normalization_78[0][0]
__________________________________________________________________________________________________
activation_79 (Activation) (None, None, None, 3 0 batch_normalization_79[0][0]
__________________________________________________________________________________________________
activation_82 (Activation) (None, None, None, 3 0 batch_normalization_82[0][0]
__________________________________________________________________________________________________
activation_83 (Activation) (None, None, None, 3 0 batch_normalization_83[0][0]
__________________________________________________________________________________________________
batch_normalization_84 (BatchNo (None, None, None, 1 576 conv2d_84[0][0]
__________________________________________________________________________________________________
activation_76 (Activation) (None, None, None, 3 0 batch_normalization_76[0][0]
__________________________________________________________________________________________________
mixed9_0 (Concatenate) (None, None, None, 7 0 activation_78[0][0]
activation_79[0][0]
__________________________________________________________________________________________________
concatenate (Concatenate) (None, None, None, 7 0 activation_82[0][0]
activation_83[0][0]
__________________________________________________________________________________________________
activation_84 (Activation) (None, None, None, 1 0 batch_normalization_84[0][0]
__________________________________________________________________________________________________
mixed9 (Concatenate) (None, None, None, 2 0 activation_76[0][0]
mixed9_0[0][0]
concatenate[0][0]
activation_84[0][0]
__________________________________________________________________________________________________
conv2d_89 (Conv2D) (None, None, None, 4 917504 mixed9[0][0]
__________________________________________________________________________________________________
batch_normalization_89 (BatchNo (None, None, None, 4 1344 conv2d_89[0][0]
__________________________________________________________________________________________________
activation_89 (Activation) (None, None, None, 4 0 batch_normalization_89[0][0]
__________________________________________________________________________________________________
conv2d_86 (Conv2D) (None, None, None, 3 786432 mixed9[0][0]
__________________________________________________________________________________________________
conv2d_90 (Conv2D) (None, None, None, 3 1548288 activation_89[0][0]
__________________________________________________________________________________________________
batch_normalization_86 (BatchNo (None, None, None, 3 1152 conv2d_86[0][0]
__________________________________________________________________________________________________
batch_normalization_90 (BatchNo (None, None, None, 3 1152 conv2d_90[0][0]
__________________________________________________________________________________________________
activation_86 (Activation) (None, None, None, 3 0 batch_normalization_86[0][0]
__________________________________________________________________________________________________
activation_90 (Activation) (None, None, None, 3 0 batch_normalization_90[0][0]
__________________________________________________________________________________________________
conv2d_87 (Conv2D) (None, None, None, 3 442368 activation_86[0][0]
__________________________________________________________________________________________________
conv2d_88 (Conv2D) (None, None, None, 3 442368 activation_86[0][0]
__________________________________________________________________________________________________
conv2d_91 (Conv2D) (None, None, None, 3 442368 activation_90[0][0]
__________________________________________________________________________________________________
conv2d_92 (Conv2D) (None, None, None, 3 442368 activation_90[0][0]
__________________________________________________________________________________________________
average_pooling2d_8 (AveragePoo (None, None, None, 2 0 mixed9[0][0]
__________________________________________________________________________________________________
conv2d_85 (Conv2D) (None, None, None, 3 655360 mixed9[0][0]
__________________________________________________________________________________________________
batch_normalization_87 (BatchNo (None, None, None, 3 1152 conv2d_87[0][0]
__________________________________________________________________________________________________
batch_normalization_88 (BatchNo (None, None, None, 3 1152 conv2d_88[0][0]
__________________________________________________________________________________________________
batch_normalization_91 (BatchNo (None, None, None, 3 1152 conv2d_91[0][0]
__________________________________________________________________________________________________
batch_normalization_92 (BatchNo (None, None, None, 3 1152 conv2d_92[0][0]
__________________________________________________________________________________________________
conv2d_93 (Conv2D) (None, None, None, 1 393216 average_pooling2d_8[0][0]
__________________________________________________________________________________________________
batch_normalization_85 (BatchNo (None, None, None, 3 960 conv2d_85[0][0]
__________________________________________________________________________________________________
activation_87 (Activation) (None, None, None, 3 0 batch_normalization_87[0][0]
__________________________________________________________________________________________________
activation_88 (Activation) (None, None, None, 3 0 batch_normalization_88[0][0]
__________________________________________________________________________________________________
activation_91 (Activation) (None, None, None, 3 0 batch_normalization_91[0][0]
__________________________________________________________________________________________________
activation_92 (Activation) (None, None, None, 3 0 batch_normalization_92[0][0]
__________________________________________________________________________________________________
batch_normalization_93 (BatchNo (None, None, None, 1 576 conv2d_93[0][0]
__________________________________________________________________________________________________
activation_85 (Activation) (None, None, None, 3 0 batch_normalization_85[0][0]
__________________________________________________________________________________________________
mixed9_1 (Concatenate) (None, None, None, 7 0 activation_87[0][0]
activation_88[0][0]
__________________________________________________________________________________________________
concatenate_1 (Concatenate) (None, None, None, 7 0 activation_91[0][0]
activation_92[0][0]
__________________________________________________________________________________________________
activation_93 (Activation) (None, None, None, 1 0 batch_normalization_93[0][0]
__________________________________________________________________________________________________
mixed10 (Concatenate) (None, None, None, 2 0 activation_85[0][0]
mixed9_1[0][0]
concatenate_1[0][0]
activation_93[0][0]
==================================================================================================
Total params: 21,802,784
Trainable params: 21,768,352
Non-trainable params: 34,432
__________________________________________________________________________________________________
Now since we are using inception model so lets create a inception model using keras and print its layers
1
layers_contributions=['mixed3', 'mixed5']
Lets describe layers whose patterns we want to embed into our input image. Here we are using mixed3 and mixed5 layers which are concatenation of different convolution layers.
1
dream_model=deep_dream_model(inception,layers_contributions)
Now we will create dream model using deep_dream_model function which we had defined earlier
1
2
3
4
5
deep_outputs=dream_model(preprocessed_image)
for layer_name,outputs in zip(layers_contributions,deep_outputs):
print(layer_name)
print(outputs.shape)
print(outputs.numpy().mean())
mixed3
(1, 19, 30, 768)
0.44434533
mixed5
(1, 19, 30, 768)
0.16857202
Lets test how we can extract and manipulate activations of layers which we have defined in layers_contributions using our deep dream model
1
model_output= lambda model,inputs:model(inputs)
Now lets define a helper function which will return output of model on providing input. Above we have defined a lambda function which takes model and input image as parameter and return output of model ie.. activations of layers which we have defined in layers_contributions
1
2
3
4
5
def get_loss(activations):
loss=[]
for activation in activations:
loss.append(tf.math.reduce_mean(activation))
return tf.reduce_sum(loss)
the above function defines our loss function which we will maximize using gradient ascent. It is simply sum of mean of activations
1
2
3
4
5
6
7
8
9
def get_loss_and_gradient(model,inputs,total_variation_weight=0):
with tf.GradientTape() as tape:
tape.watch(inputs)
activations=model_output(model,inputs)
loss=get_loss(activations)
loss=loss+total_variation_weight*tf.image.total_variation(inputs)
grads=tape.gradient(loss,inputs)
grads /= tf.math.reduce_std(grads) + 1e-8
return loss,grads
the above function returns gradient (derivative) of our loss function with respect to our input image. We use tensorflow GradientTape to calculate gradients. First we have to watch our input image since it is not tensorflow variable then we get our model outputs which are activations of layers in layers_contributions and we will use these activations to find loss and finally find out gradient using tape.gradient method we also standardized our gradients by dividing it with standard deviation of gradients. A small number 1e-8 is also added to prevent accidentally division by 0.
There is also total_variation_weight parameter this will be used for adding some amount of total_variation loss into our loss function.
The total variation loss is the sum of the absolute differences for neighbouring pixel-values in the input images. This measures how much noise is in the images.
total variation loss is not necessary for deep dream outputs but can be used to smooth out result. play with total_variation_weight parameter to find result of your liking.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
def run_gradient_ascent(model,inputs,epochs=1,steps_per_epoch=1,weight=0.01,total_variation_weight=0):
img = tf.convert_to_tensor(inputs)
start=time.time()
for i in range(epochs):
print(f"epoch: {i+1}",end=' ')
for j in range(steps_per_epoch):
loss,grads=get_loss_and_gradient(model,img,total_variation_weight)
img = img + grads*weight
img = tf.clip_by_value(img, -1.0, 1.0)
print('=',end='')
print("\n")
end=time.time()
print(f"Time elapsed: {end-start:1f}sec")
return img.numpy()
Now we have gradients of loss with respect to input image, we define a function that will do gradient ascent by changing our input image in direction of gradients. This will maximize input space which will eventually increase activations of layers. This function also takes epochs as parameter which is number of iteration for which we want to process image. weight parameter is strength of patterns embeds to image. Method also prints stats of each epoch
1
image_array=run_gradient_ascent(dream_model,preprocessed_image,epochs=2,steps_per_epoch=100,weight=0.01)
epoch: 1 ====================================================================================================
epoch: 2 ====================================================================================================
Time elapsed: 62.779686sec
Now its time to create deep dream image, we apply gradient ascent for some epochs and save our image into a variable which is a numpy array
1
2
3
show_image(deprocess_inception_image(image_array))
resultant_image=array_to_img(image_array,True)
resultant_image.save("deep_dream_simple.jpg")
Now we are ready to see how our input image looks like. We first deprocess our numpy array and then convert it to image and finally save output image to hard drive as image.
Deep Dreaming using octaves
To improve quality of patterns in image we can use octaves technique. In this technique input image is processed at different scale. Each different size image is an octave this improve quality of patterns on image.
Steps
- first base shape of image is saved to a variable
- input image is then scaled to different sizes smaller and greater than base shape
- these octaves (different scaled images) are then passed to run_gradient_ascent function to apply gradient ascent to each octave.
- finally resultant image is again resized to base shape
1
2
3
4
5
6
7
8
9
10
11
12
def run_gradient_ascent_with_octaves(model,inputs,epochs=1,steps_per_epoch=1,num_octaves=2,octave_size=1.3,weight=0.01,total_variation_weight=0):
img=tf.convert_to_tensor(inputs)
assert len(inputs.shape)<=4 or len(inputs.shape)>=3
if len(inputs.shape)==3:
base_shape=img.shape[:-1]
base_shape=img.shape[1:-1]
for n in range(-num_octaves,1):
print(f'Processing Octave: {n*-1}')
new_shape=tuple([int(dim * (octave_size**n)) for dim in base_shape])
img=tf.image.resize(img,new_shape)
img=run_gradient_ascent(model,img,epochs,steps_per_epoch,weight,total_variation_weight)
return tf.image.resize(img,base_shape).numpy()
the above function runs gradient ascent using octave technique. It takes num_octaves parameter which is number of octaves you want to process. Default is 2 that means it process 2 octaves and 1 original image.
Image is resized using tensorflow image.resize function. New shape is calculated by raising height and width of image to power of octave number to process. As you can notice loops starts from -num_octaves to 0 (excluding 1). Negative power will scale down the image from its base shape. We can also run loop from -num_octaves to +num_octave but as image size increases it consume more RAM.
octave_size parameter tells by what factor we want to scale images
1
image_array=run_gradient_ascent_with_octaves(dream_model,preprocessed_image,epochs=1,steps_per_epoch=100,num_octaves=3,octave_size=1.3,weight=0.01)
Processing Octave: 3
epoch: 1 ====================================================================================================
Time elapsed: 25.796944sec
Processing Octave: 2
epoch: 1 ====================================================================================================
Time elapsed: 27.048554sec
Processing Octave: 1
epoch: 1 ====================================================================================================
Time elapsed: 27.536671sec
Processing Octave: 0
epoch: 1 ====================================================================================================
Time elapsed: 31.441849sec
Now its time to create deep dream image, It takes more time to create deep dream but it worth.
1
2
3
show_image(deprocess_inception_image(image_array))
image=array_to_img(image_array,True)
image.save("deep_dream_with_octave.jpg")
And this time we got some exciting results.
Deep Dreaming using Image Tiling
As we start processing bigger images we need more RAM to put it into memory for calculating gradients. Also we cannot process more octaves using above techniques.
This issue can be fixed by using image tilings, In this technique we split image into tiles and gradient is calculated for each tile seperately.
By tiling images into small sizes and processing these tiles solves the issue as we have to process small tiles of image not the entire image.
While tiling we make sure that it is random else we get seam in our image after processing.
1
2
3
4
5
6
7
# Randomly rolls the image to avoid tiled boundaries
def random_image_tiling(img, maxdim):
shift = tf.random.uniform(shape=[2], minval=-maxdim, maxval=maxdim, dtype=tf.int32)
shift_r,shift_d=shift
img_rolled = tf.roll(img, shift=[shift_r,shift_d], axis=[1,0])
return shift_r, shift_d, img_rolled
the above function takes image as input and randomly rolls the image to avoid tiled boundaries. It returns shifted image and positions from where image was shifted. We have used tensorflow roll function to shift images. It create roll of an array along different axis from shift positions specified.
1
2
shift_r,shift_d,img_tiled=random_image_tiling(input_image[0], 512)
show_image(img_tiled.numpy())
lets test of how random tiled image function transforms our image and randomly roll it so that we do not get same tile everytime we process and seam across image.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
def get_loss_and_grads_with_tiling(model,inputs,tile_size=512,total_variation_weight=0.004):
shift_r,shift_d,rolled_image=random_image_tiling(inputs[0],tile_size)
grads=tf.zeros_like(rolled_image)
# create a tensor from 0 to rolled_image width with step of tile size
x_range = tf.range[0, rolled_image.shape[0], tile_size](:-1)
# check if x_range is not empty
if not tf.cast(len(x_range), bool):
x_range= tf.constant([0])
# create a tensor from 0 to rolled_image height with step of tile size
y_range = tf.range[0, rolled_image.shape[1], tile_size](:-1)
# check if y_range is not empty
if not tf.cast(len(y_range), bool):
y_range=tf.constant([0])
for x in x_range:
for y in y_range:
with tf.GradientTape() as tape:
tape.watch(rolled_image)
# here we create tile from rolled image of size=tile_size
image_tile= tf.expand_dims(rolled_image[x:x+tile_size, y:y+tile_size],axis=0)
activations=model_output(model,image_tile)
loss=get_loss(activations)
loss=loss+total_variation_weight*tf.image.total_variation(image_tile)
grads=grads+tape.gradient(loss,rolled_image)
grads = tf.roll(grads, shift=[-shift_r,-shift_d], axis=[1,0]) #reverse shifting of rolled image
grads /= tf.math.reduce_std(grads) + 1e-8
return loss,grads
Lets define a way to get gradients from tiled image. In above function we first get random rolled image and its rolling positions using random_image_tiling function. We then have some logic to create a tile from rolled image of size tile_size specified. This tile image is then passed to model and loss is calculated finally gradients are calculated for that tile and added to grads tensor. We process small tiles of rolled image till we have iterated whole image (rolled image) and all gradients of each tile are summed together. Then we reverse the shiftings of rolled image back to original image and finally scaling and returning the gradients.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
def run_gradient_ascent_with_octave_tiling(model,inputs,steps_per_octave=100,num_octaves=2,octave_size=1.3,tile_size=512,weight=0.01,total_variation_weight=0.0004):
img=tf.convert_to_tensor(inputs)
weight=tf.convert_to_tensor(weight)
assert len(inputs.shape)<=4 or len(inputs.shape)>=3
if len(inputs.shape)==3:
base_shape=img.shape[:-1]
base_shape=img.shape[1:-1]
start=time.time()
for n in range(-num_octaves,num_octaves+1):
print(f'Processing Octave: {n+num_octaves+1}')
new_shape=tuple([int(dim*(octave_size**n)) for dim in base_shape])
img=tf.image.resize(img,new_shape)
for step in range(steps_per_octave):
print('=',end='')
loss,grads=get_loss_and_grads_with_tiling(model,img,tile_size,total_variation_weight)
img = img + grads*weight
img = tf.clip_by_value(img, -1.0, 1.0)
print("\n")
end=time.time()
print(f"Time elapsed: {end-start:.1f} sec")
return tf.image.resize(img, base_shape).numpy()
the above funtion is same as run_gradient_ascent_with_octave but instead of using get_loss_and_grads function here we have used get_loss_and_grads_with_tiling to get gradients using tiling images strategy.
1
image_array=run_gradient_ascent_with_octave_tiling(dream_model,preprocessed_image,steps_per_octave=100,num_octaves=3,octave_size=1.3,tile_size=512,weight=0.01,total_variation_weight=0)
Processing Octave: 1
====================================================================================================
Processing Octave: 2
====================================================================================================
Processing Octave: 3
====================================================================================================
Processing Octave: 4
====================================================================================================
Processing Octave: 5
====================================================================================================
Processing Octave: 6
====================================================================================================
Processing Octave: 7
====================================================================================================
Time elapsed: 270.3 sec
Now its time to create deep dream image. Time taken to create dream depends on size of input image passed. It also uses octave technique previously discussed to improve quality of image but now we can process more octaves.
1
2
3
show_image(deprocess_inception_image(image_array))
image=array_to_img(image_array,True)
image.save("deep_dream_with_octave_tiling.jpg")
and this time we got some more exciting results also we can create bigger resolution dream.
So finally we are ready to see some deep dreams of neural networks. Play with it and share exciting results.
Thanks for reading till last. ✌✌✌
